Magic Pod for “Foil Drive v2 Motors” Setup

Magic Pod for “Foil drive v2 motors”  Setup

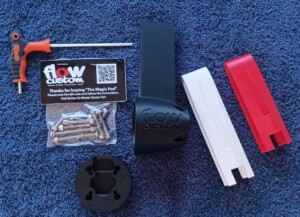

Content:

– Magic Pod Carbon Base.
– Short and Long Nose.
– Manta Foil Adapter.
– 3mm Allen Tool
– Screw Set:
* 2 x M5 x 50mm
* 2 x M5 Nuts + Washers
* 4 x M4 x 16mm
* 4 x M4 x 30mm

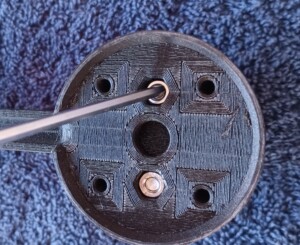

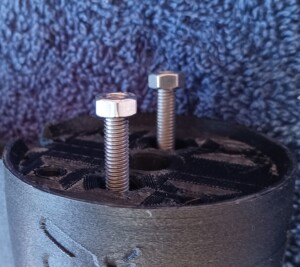

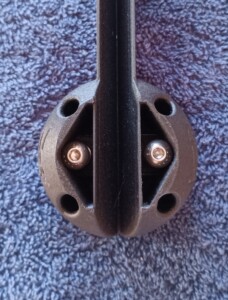

1- Install M5 x 50mm at the base all the way, and screw the nuts:

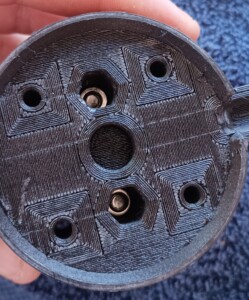

Press the nuts all the way inside (the place is conical so the nuts will be fixed into the position after press them)

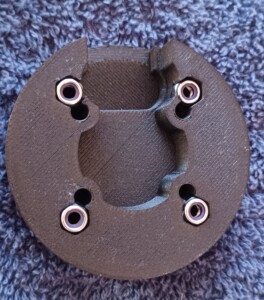

Install the 4 M4 nuts  At the V2 Adapter base :

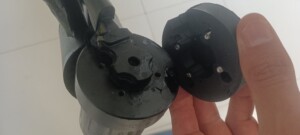

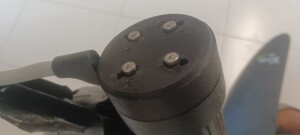

Screw the V2 base adapter to the V2 motor with 4 x 16mm screws :

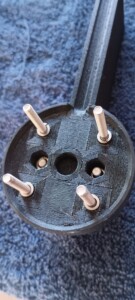

Attention!! Orders after 1st March 2025 avoid this step. Install the 4 x M4x30mm screws with  split washers at each Screw head and and 4 washers between the Pod base and the Adapter plate:

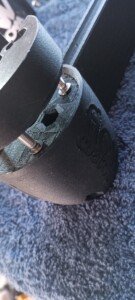

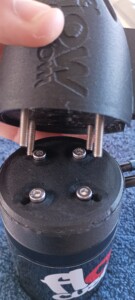

Screw the Pod Base to the Adapter Plate:

Follow the instructions to fix the Pod to the mast:



How To Modify the Nose With boiling Water

IF THE VIDEO IS NOT PLAYED AUTOMATICALLY PLEASE CLICK HERE
