Magic Pod for “Manta Foil” setup

Magic Pod for “Manta Foil” Take Off (Air and Flow) Setup

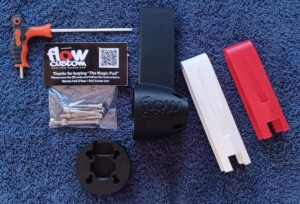

Content:

– Magic Pod Carbon Base.
– Short and Long Nose.
– Manta Foil Adapter.
– 3mm Allen Tool
– Screw Set:
* 2 x M5 x 50mm
* 2 x M5 Nuts + Washers
* 4 x M4 x 35mm

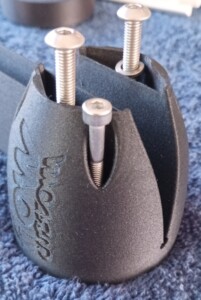

1- Install M5 x 50mm at the base all the way, and screw the nuts:

Press the nuts all the way inside (the place is conical so the nuts will be fixed into the position after press them)

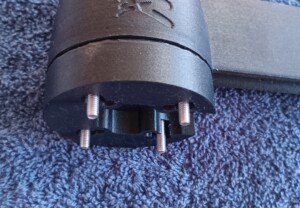

Install the 4 screws M4x35mm At the base, press them all the way to the end:

Important!! Orders after 1st March 2025 avoid this step. Install 4 washers at each screw between the Pod base and the adapter plate

Insert the adapter plate

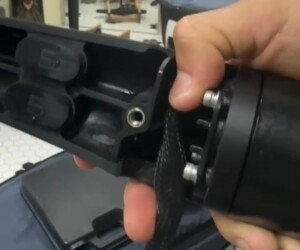

Install the adapter and the base is ready to connect the motor.

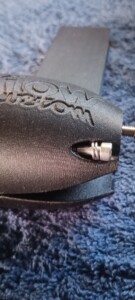

ATTENTION, some customers report lately some manta motor have shorter threads (just 4mm deep) in this case add 2 washers at each screw as the image shows.

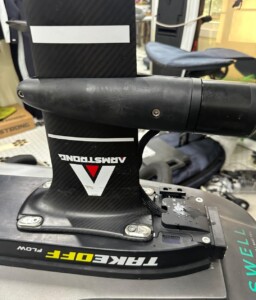

Remove the original pod removing the 4 screws:

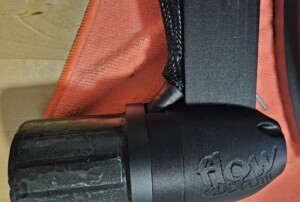

Bend the cable and install the Magic Pod:

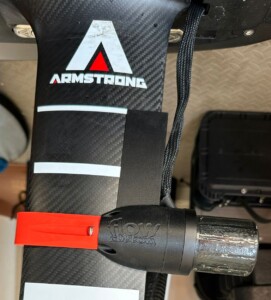

Follow the instructions to fix the Pod to the mast:

How To Modify the Nose With boiling Water

IF THE VIDEO IS NOT PLAYED AUTOMATICALLY PLEASE CLICK HERE
